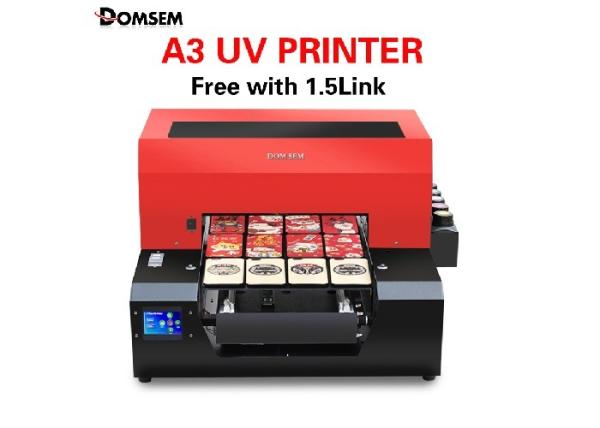

High Efficiency Mobile Phone Back Cover Printing Machine A3 Size

    Buy cheap High Efficiency Mobile Phone Back Cover Printing Machine A3 Size from wholesalers

    Buy cheap High Efficiency Mobile Phone Back Cover Printing Machine A3 Size from wholesalers
    • Buy cheap High Efficiency Mobile Phone Back Cover Printing Machine A3 Size from wholesalers

    High Efficiency Mobile Phone Back Cover Printing Machine A3 Size

    Ask Lasest Price
    Brand Name : DOMSEM
    Model Number : DS-UVA3
    Certification : CE, RoHS
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram, paypal,
    Supply Ability : 120 sets per month
    Delivery Time : 3-18 days
    • Product Details
    • Company Profile

    High Efficiency Mobile Phone Back Cover Printing Machine A3 Size

    A3 digital flatb uv printer dtg ink Digital Textile Printing machine

    Product Application

    A3 UV flatbed printer is the ideal solution for DIY Customied printing on the products, which is a multi-functional LED UV flatbed printer that created by DOMSEM and was built with industrial configuration as thicken aluminum profile, water cyculation cooling system. Automatic detect UV curing system, 6 colors and max 2880 dpi printing resolution. Can print on all kinds of surfaces, available in 3D textured and raised printing, suitable for printing on both rigid and flexible material, like phone cases, metal (aluminum, copper etc), alloys, mirror, gifts packaging (wood, carbon paper, metal), tablet cover, USB sticks, DVD disc, industry signs, badge, plastic card, PVC, glass, wood, paper etc.

    SpecificationsA3 Size Flatbed UV LED Printer
    Print headOriginal from Epson 1390
    Print directionUnidirection/ Bidirection
    Print SizeA3 420*300mm
    Print Resolution2880*1440dpi/ 1440*1440dpi
    CertificationCE, RoHS
    Print Color6 colors (CMYK+WW)
    Max.Media thickness10cm
    Max.Media weight10kg
    Printing interfaceUSB 2.0
    Printing softwareAcroRip9.0
    Computer SystemAll windows system
    Ink typeRigid UV curing ink, soft UV curing ink
    Ink certificationSGS certification
    Ink Color6 Colors (CMYK+WW)
    Ink SystemContinuous ink supply system
    Dry systemUV LED instant system
    UV LED wave length395nm
    UV LED lifespan50000hours
    Printing Precisionsmall then 0.1mm
    Cool systemWater circulation cooling system
    Print Head HeightAutomatic Adjustment
    ControlLCD touch screen control panel
    Printer DimensionL56*W50*H40cm
    Net weight48kg
    Gross weight75kg
    Packing sizeL86*W74*H56cm
    Power consumption150Watt
    Work VoltageAC100-240V 50-60hZ

    Main Features

    1-Easy Operation: Unique lateral loading platform design, Control on Demand system.

    2-Maximize your productivity: Unidirection and Bidirection

    3-High Printing Precision: Automatic detect the X (carriage), Y (flatbed) motion pulse and send back the real motion data to the main-board for interpolating. Combine with the closed-loop structure circuit design to enhance the stability of the system and ensure the flatbed printing with one pass printing precision and repeat printing precision.

    4-High Resolution Printing:

    a. High color density, Wide color gamut, Instant drying.

    b. Excellent adhesion to both coated and uncoated media.

    c. Superior scratch and alcohol resistance. 3 years outdoor durability.

    5-Maintenance simplified:

    a. Accessible electronic, Components in on integrated compartment

    b. Easily accessible ink system from maintenance.

    c. Easy to access refillable ink containers.
