UV flatbed Printer Machine Glass Metal Printing Machine for Plastic
Acrylic
Product Application
A3 UV flatbed printer is the ideal solution for DIY Customied
printing on the products, which is a multi-functional LED UV
flatbed printer that created by DOMSEM and was built with
industrial configuration as thicken aluminum profile, water
cyculation cooling system. Automatic detect UV curing system, 6

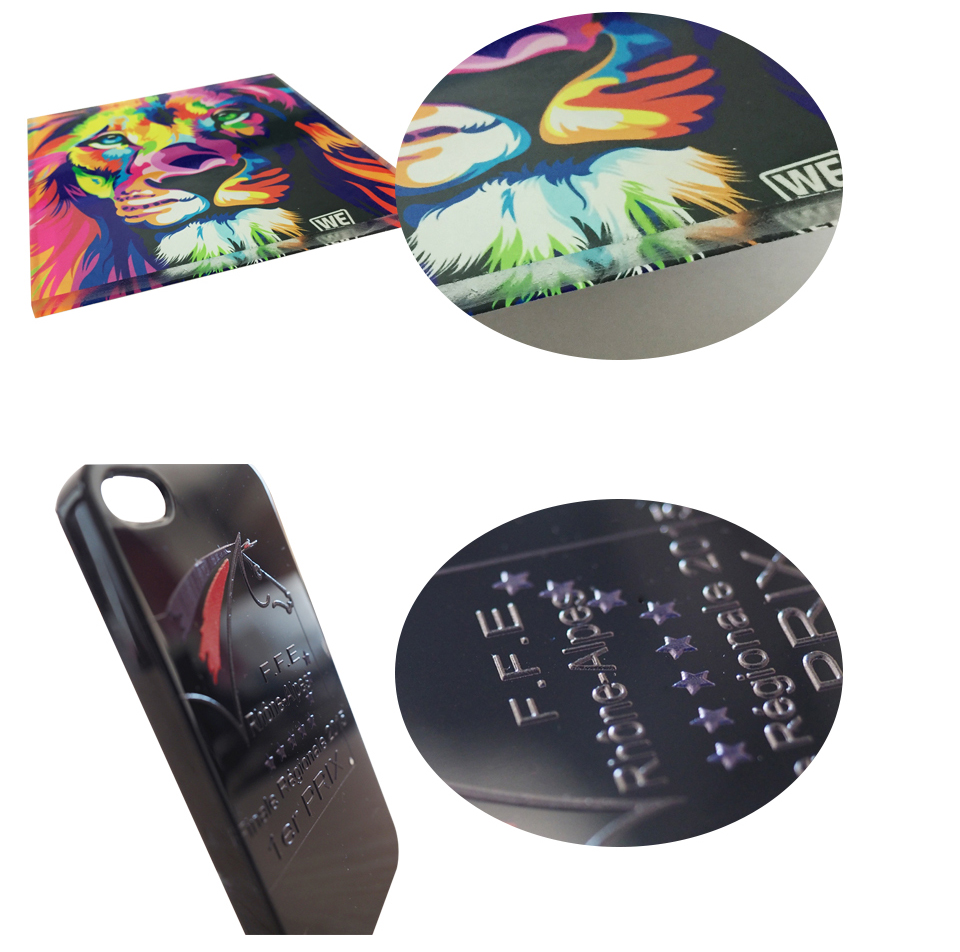

colors and max 2880 dpi printing resolution. Can print on all kinds
of surfaces, available in 3D textured and raised printing, suitable
for printing on both rigid and flexible material, like phone cases,
metal (aluminum, copper etc), alloys, mirror, gifts packaging
(wood, carbon paper, metal), tablet cover, USB sticks, DVD disc,
industry signs, badge, plastic card, PVC, glass, wood, paper etc.
Specifications | UV flatbed Printer for Plastic Acrylic |
Print head | Original from Epson 1390 |
Print direction | Unidirection/ Bidirection |
Print Size | A3 420*300mm |
Print Resolution | 2880*1440dpi/ 1440*1440dpi |
Certification | CE, RoHS |
Print Color | 6 colors (CMYK+WW) |
Max.Media thickness | 10cm |
Max.Media weight | 10kg |
Printing interface | USB 2.0 |
Printing software | AcroRip9.0 |
Computer System | All windows system |
Dry system | UV LED instant system |
UV LED wave length | 395nm |
UV LED lifespan | 50000hours |
Printing Precision | small then 0.1mm |
Cool system | Water circulation cooling system |
Print Head Height | Automatic Adjustment |
Control | LCD touch screen control panel |
Printer Dimension | L56*W50*H40cm |
Net weight | 48kg |
Gross weight | 75kg |
Packing size | L86*W74*H56cm |
Power consumption | 150Watt |
Work Voltage | AC100-240V 50-60hZ |
Main Features
1-High Resolution Printing:
a. High color density, Wide color gamut, Instant drying.
b. Excellent adhesion to both coated and uncoated media.
c. Superior scratch and alcohol resistance. 3 years outdoor
durability.
2-Maintenance simplified:
a. Accessible electronic, Components in on integrated compartment
b. Easily accessible ink system from maintenance.
c. Easy to access refillable ink containers.
3-High Printing Precision: Automatic detect the X (carriage), Y (flatbed) motion pulse and
send back the real motion data to the main-board for interpolating. Combine with the closed-loop structure circuit design to enhance
the stability of the system and ensure the flatbed printing with
one pass printing precision and repeat printing precision.
