Product Application

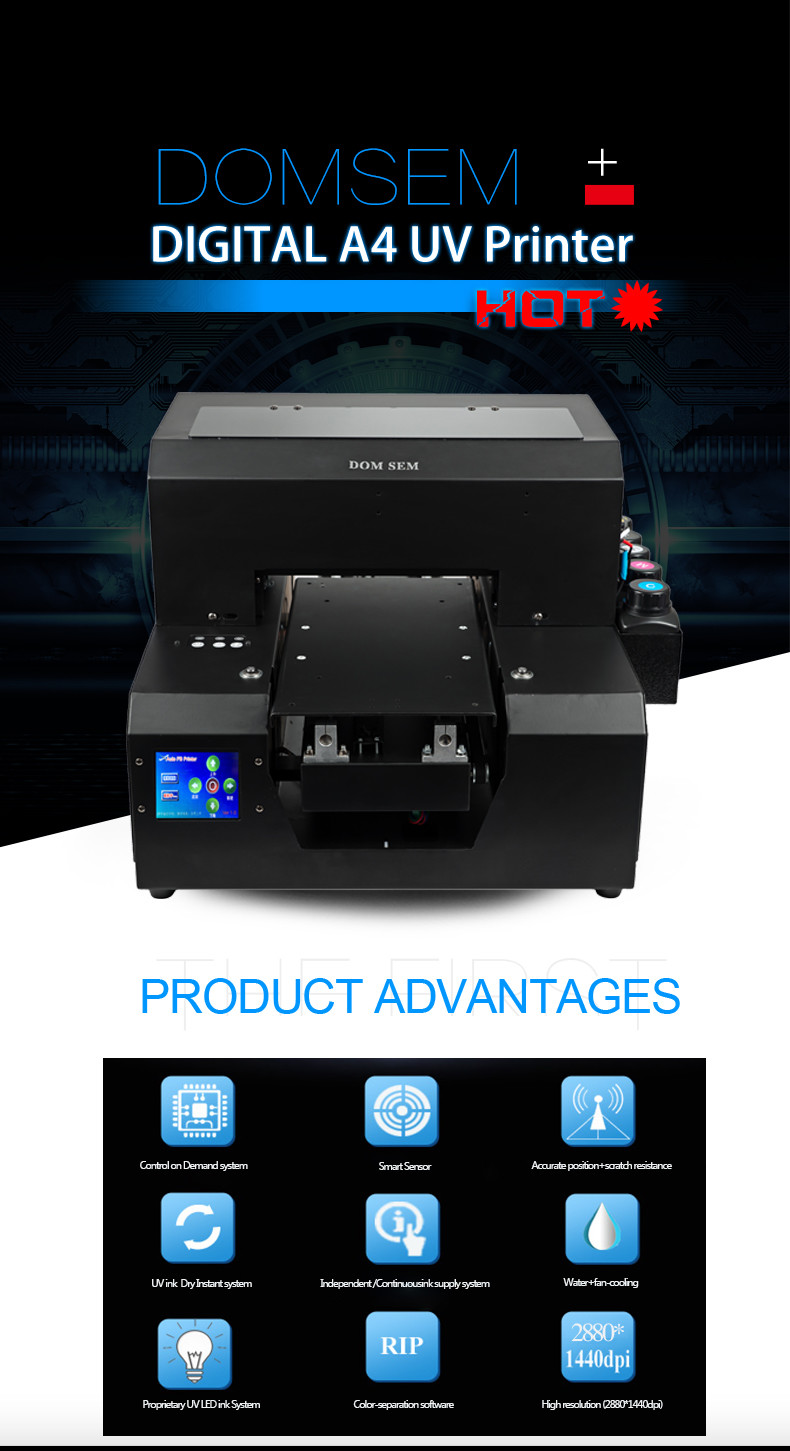

A4 UV flatbed printer is the ideal solution for DIY Custom printing
on the products, which is a multi-functional LED UV flatbed printer
that created by DOMSEM and was built with industrial configuration
as thicken aluminum profile, water cyculation cooling system.
Automatic detect UV curing system, 6 colors and max 2880 dpi
printing resolution. Can print on all kinds of surfaces, available
in 3D textured and raised printing, suitable for printing on both
rigid and flexible material, like T shirt, garment, cloth, phone
cases, metal (aluminum, copper etc), alloys, mirror, gifts
packaging (wood, carbon paper, metal), tablet cover, USB sticks,
DVD disc, industry signs, badge, plastic card, PVC, glass, wood,
paper etc.
| Specifications | Mini A4 Size Flatbed UV Printer |
| Print head | Original from Epson L800 |
| Print direction | Unidirection/ Bidirection |
| Print Size | A4 210*300mm |
| Print Resolution | 2880*1440dpi/ 1440*1440dpi |
| Print Speed | Unidirection/ Bidirection |
| Print Color | 6 colors (CMYK+WW) |
| Max.Media thickness | 10cm |
| Max.Media weight | 10kg |
| Printing interface | USB 2.0 |
| Printing software | AcroRIP8.1 /AcroRip 9.03 |
| Computer System | All windows system |
| Ink type | Rigid UV curing ink, soft UV curing ink |
| Ink certification | SGS certification |
| Ink Color | 6 Colors (CMYK+WW) |
| Ink System | Continuous ink supply system |
| Dry system | UV LED instant dry system |
| UV LED wave length | 395nm |
| UV LED lifespan | 50000hours |
| Printing Precision | less than 0.1mm |
| Cool system | Water circulation + fan |
| Print Head Height | Smart sensor Adjustment |
| Control | Automatic control panel |
| Printer Dimension | L635*W500*H400mm |
| Net weight | 32kg |
| Gross weight | 42kg |
| Packing size | L56*W65*H47cm |
| Power consumption | 100Watt |
| Work Voltage | AC100-240V 50-60hZ |
Main Features
1-Easy Operation: Unique lateral loading platform design, Control on Demand system.
2-Maximize your productivity: Unidirection / Bidirection
3-High Printing Precision: Automatic detect the X (carriage), Y (flatbed) motion pulse and
send back the real motion data to the main-board for interpolating. Combine with the closed-loop structure circuit design to enhance
the stability of the system and ensure the flatbed printing with
one pass printing precision and repeat printing precision.
4-High Resolution Printing:
a. High color density, Wide color gamut, Instant drying.
b. Excellent adhesion to both coated and uncoated media.
c. Superior scratch and alcohol resistance. 3 years outdoor
durability.
5-Maintenance simplified:
a. Accessible electronic, Components in on integrated compartment
b. Easily accessible ink system from maintenance.
c. Easy to access refillable ink containers.
